Hybrid VRF

Design with Ease of Mind,without limitations

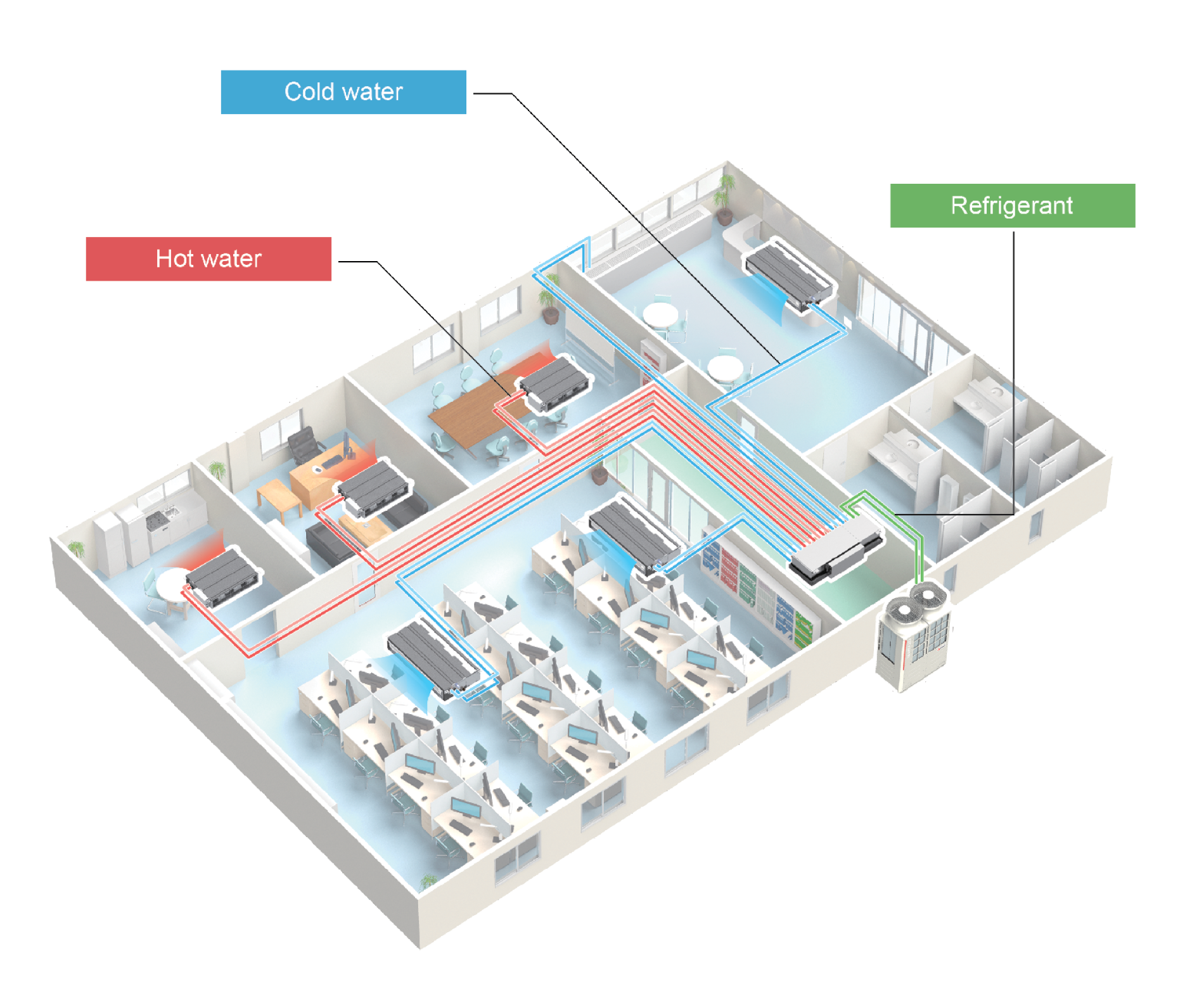

Room configuration for HVRF
HVRF Branch Box
  • Refrigerant from outdoor unit

NOW YOU CAN TAKE VRF ANYWHERE


HVRF Office Floorplan
HVRF Hotels and Residences Floorplan
HVRF Educational Facilities Floorplan
HVRF Hospital Floorplan

THE HYBRID ADVANTAGE: HVRF BENEFITS

Hybrid VRF works seamlessly in a packaged Mitsubishi electric system
Hybrid VRF works seamlessly in a packaged Mitsubishi electric system
Outdoor units, HBC Controller, indoor units, and remote controllers are offered as a package which facilitates design work. Furthermore, connecting M-NET wiring of these units allow optimum control of the whole system to satisfy the zones load precisely.
High Energy efficiency through heat recovery
High energy efficiency through heat recovery
The system efficiency is at its peak when the ratio of heating and cooling is 50:50 because of dynamic heat recovery.
Individual control of indoor units
Individual control of indoor units
A suitable remote controller can be selected according to zone application.
Manageable phased installation
Manageable phased installation
The decentralized system of HVRF means phased installation is possible.
Simultaneous heating and cooling operation with a 2-pipe system
Simultaneous heating and cooling operation with a 2-pipe system
HVRF is a 2-pipe system requiring less piping compared to a hydronic 4-pipe system. It needs fewer key components to be installed because components such as the pumps, heat exchanger, and valves are incorporated into the HBC Controller.
Easy control through m-net
Easy control through m-net
HVRF can provide individual control by indoor unit or by zone with the integration of Mitsubishi Electric’s MELANS Control System. Whether by local controller or centralized controller, heating and cooling can be monitored and operated remotely.
Centralized control of the entire system
Centralized control of the entire system
System controller can be connected to multiple indoor units for centralized monitoring and management, and can be integrated into Central BAS Systems using BACnet.
Small footprint. Low Weight
Small Footprint. Low Weight
HVRF is modular, has a small footprint and light weight outdoor units, and is available in a flexible range of VRF options.
Small footprint. Low Weight
Small Footprint. Low Weight
HVRF is modular, has a small footprint and light weight outdoor units, and is available in a flexible range of VRF options.
